COMPASSES
Even if a satellite-assisted Global Positioning
System unit plays a popular navigational
role,
a compass pointing to magnetic north, without
battery, does an irreplaceable back-up part.
A compass will surely be an indispensable
survival tool for Go-Explorers.
The following are just a few out of our wide
variety of products. |

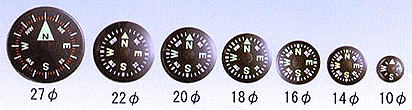

 Compass & Thermometer Capsules
 Assemble into micro fun products
Water-proof to 100 meters under
water
World's smallest 10mm up to 27mm diameter
With super bright luminosity |
|
  |
 |
| 20φ metallic (Blue,Green,Red,Silver) |
|
| |
S-27 |
S-22 |
S-20 |
S-18 |
S-16 |
S-14 |
S-10 |
| A |
27 |
22 |
20 |
18 |
16 |
14 |
10 |
| B |
8.2 |
7 |
5.8 |
5.5 |
5.2 |
5.2 |
4.6 |
| C |
9.5 |
9.5 |
8 |
7.5 |
6.8 |
6.6 |
5.6 |
|
 |
|
| Accessory Compass |
Wrist Compass Attach through wristband
Size:24x24x15 mm
Liquid-filled, Water-proof to 100 meters under water |

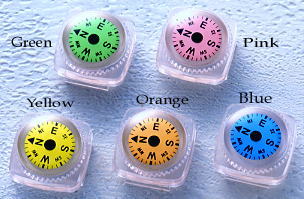

| No. 700 (With super bright luminosity) |
|
No. 700CR |
 |
|
 |
Zipper-pull compass No. 727
Size:29x28mm
Liquid-filled, Water-proof to 100 meters under water
With super bright luminosity |
 |
|
|
|

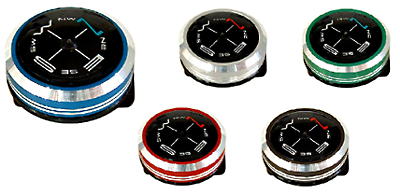

Metallic Wrist Compass No.800 (PAT.)
|
Size:φ25x16mm |
|
Liquid-filled, Shock resistant |
|
Waterproof 100m under water |
|
Easy to mount on (off) Watchband,
Keyring, Strap etc. |
|
Available colors :
Blue, Green, Silver, Red, Grey |
|
 |
|
|
Pocket Compass
| No. 213 |
No. 320 |
No. 351M |
 |
 |
 |
Metal case
Chrome-plated
|
Metal case
Black-coated
With cover |
Liquid-filled
With Mirror
|
Lensatic Compass Liquid-filled
| No. 551 |
No. 555 |
No. 6300 |
 |
 |
 |
| Black plastic |
Camouflage plastic
With Heliograph mirror |
Metal case
Gold-plated |
Field Compass (3-in-1 Compass) No.160
Size:100x55x11mm
Declination adjustable scale
Big magnifying lens;4X
Thermometer(-30 +50)
Scales 1:25000,1:50000 |
 |
Field Compass No.87
Size:60x85x12mm
Scales 1:25000,1:50000
|
 |

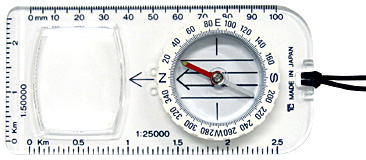

Field Compass No.126
Size:60x125x12 mm
With wideLens
Scales 1:25000,1:50000 |
 |

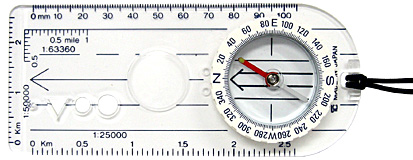

Field Compass No.141
Size:60x138x12mm
With Lens
Four map-drawing Symbols
Scales 1:25000,1:50000
|
 |
Specialized Compass
ALKAABA Compass No. 316A
Shows "Direction of ALKAABA" |
|
 |
|
|
|
MARINE COMPASS
Function of our Skillful Structures
Our MARINE COMPASSES are suitable for most pleasure boat application.
The various installation matched with unlimited heel freedom for the card
of these compasses is suitable for usage under any condition.
Hermetically sealed and liquid-filled spherical compass capsules are ideal
for smooth and fast damping action.
The expansion diaphragm of capsules is for bubble-free use under the temperature of -40°C to 60°C
(-40°F to 140°F).
All models are adopted dual ALNICO-5 magnets on card, and with built-in
compensators and supplied with 12V lighting system for night illumination.
WIDE ANGLE OPERATION SYSTEM
This system is specially designed to function with stability under extreme
vibration.
Precision is assured to withstand for constant pounding to be inherent
in power boating.
Allows tilting up to about 30 degrees.
Suitable for high-speed runabout and cruiser.
SHOCK ABSORBER
Specially built pivot and jewel assure precise suspension and the longest
life of the unit.
All models are equipped with shock absorbing system used in aircraft compass.
2 TYPES OF CARD
Compass card with 5° graduation and both Flat card
& Conical card(Counter dial) are available. |
 |
 |
| Flat card |
Conical card |
|
|
No.970-C (Conical card)
No.970-F (Flat card)
 |
 |
 |
| Black |
Metallic Grey |
Ivory |
Durable plastic housing and bracket with detachable sunshade hood, with built-in compensators and
lighting system.
Universal bracket permits horizontal or vertical mounting.
Available Colors:Black,Metallic Grey,Ivory
Size:145X152X92mm
Weight:520g |
No.7800-C (Conical card)
No.7800-F (Flat card)
 |
 |
 |
| Black |
Metallic Blue |
Ivory |
Durable plastic housing and detachable sunshade hood, with built-in compensators
and lighting system.
Available Colors:Black,Metallic Blue,Ivory
Size:185X170X170mm
Weight:1,100g |
|
|
